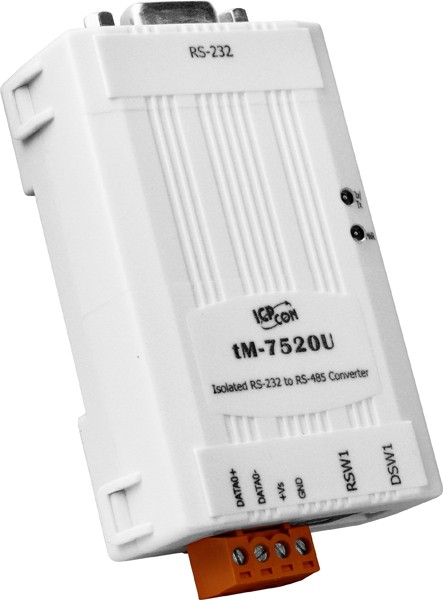

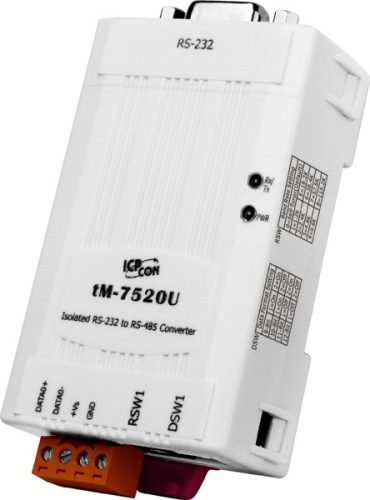

tM-7520U-CA # Tiny/Konverter/RS-232 - RS-485/2500Vdc szigetelt/kis méret/DIN sínre/ICP DAS/CA-0915 kábellel, ICP DAS

Most industrial computer systems provide standard RS-232 serial ports with limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The tM-7520U transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. This lets you easily build an industrial grade, long-distance communication system using standard PC hardware. The module provides 2500 VDC of optical isolation allowing you to separate and protect critical segments of the system from the rest of the RS-485 network. The tM-7520U provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is Fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format. The Self-Tuner design is exactly the same as I-7520 series. The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.

t

ÖSSZEHASONLÍTÓ TÁBLÁZAT: tM-7520U # I-7520

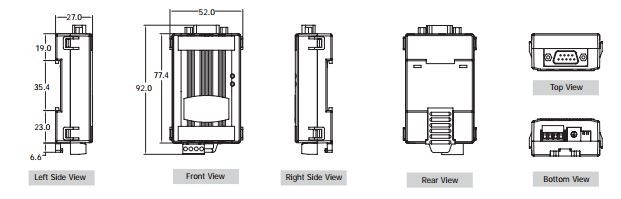

Models tM-7520U I-7520 RS-485 Direction Control Fixed baud rate setting and Automatic RS-485 Direction Control (Self-Tuner, default) Automatic RS-485 Direction Control (Self-Tuner) Baud rate 300 ~ 115200 bps for Self-Tuner 1200 ~ 115200 bps for Fixed baud rate setting 300 ~ 115200 bps Dimensions (W x H x D) 52 mm x 92 mm x 27 mm 72 mm x 118 mm x 35 mm Remarks Entry-level Long-cable application Entry-level

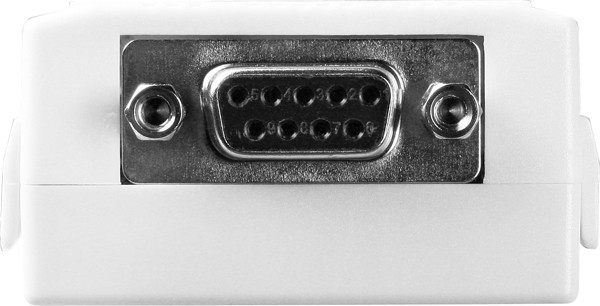

Interface Input RS-232: TxD, RxD and GND Output RS-485: Data+, Data- RS-485 Bias Resistor Yes, 1 KΩ Node 254 (max.) Transfer Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change) 2500 VDC Isolated Protection Yes Connection Removable 4-Pin Terminal Block x 1; 9-Pin Female D-Sub x 1 LED Indicators Power/TxD/RxD Yes Power Input Voltage Range +10 VDC ~ +30 VDC (Non-isolated) Power Consumption 0.5 W Environment Operating Temperature -25 °C ~ +75 °C Storage Temperature -30 °C ~ +75 °C Humidity 10 ~ 90% RH, non-condensing

tM-7520U CR Isolated RS-232 to RS-485 Converter (RoHS) tM-7520U-CA CR tM-7520U CR with CA-0915 cable x 1 (RoHS)
