tM-7510U # RS-485 vonalerősítő/szigetelt/Repeater/tiny/RS-485/isolated, ICP DAS

The tM-7510U repeater simply amplifies, or boosts, existing RS-485 signals to enable them to cover longer distances. It extends the communication distance by 4000 ft. (1200 m) or increases the maximum number of bus nodes. The module provides 2500 VDC of isolation allowing you to separate and protect critical segments of the system from the rest of the RS- 485 network. The tM-7510U provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is Fixed baud rate mode. The Self-Tuner mode can support multiple baud rate and multiple data format. The Self-Tuner design is exactly the same as I-7510 series. The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.

Models tM-7510U I-7510 RS-485 Direction Control Fixed baud rate setting and Automatic RS-485 Direction Control (Self-Tuner, default) Automatic RS-485 Direction Control (Self-Tuner) Baud rate 300 ~ 115200 bps for Self-Tuner 1200 ~ 115200 bps for Fixed baud rate setting 300 ~ 115200 bps Dimensions (W x H x D) 52 mm x 95 mm x 27 mm 72 mm x 122 mm x 35 mm Remarks Entry-level Long-cable application Entry-level

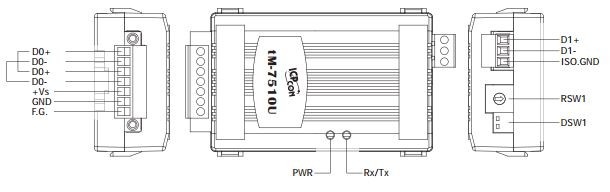

Interface Serial Interface RS-485 2-wire Data+, Data- Bias Resistor Yes, 1 KΩ Node 254 (max.) Transmission Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change) 2500 VDC Isolated Voltage 2-way Isolation Connector Removable 7-Pin Terminal Block x 1; Removable 3-Pin Terminal Block x 1 LED Indicators Power/Communication Yes Power Input Voltage Range +10 VDC ~ +30 VDC (Non-isolated) Power Consumption 0.6 W Environment Operating Temperature -25 °C ~ +75 °C Storage Temperature -30 °C ~ +75 °C Humidity 10 ~ 90% RH, non-condensing

tM-7510U CR Isolated RS-485 Repeater (RoHS)
