CAN - Fiber optikai szál konverter

Model Name	I-2533CS	I-2533CS-60	I-2533CS-A I-2533CS-B ^*note1	I-2533	I-2532

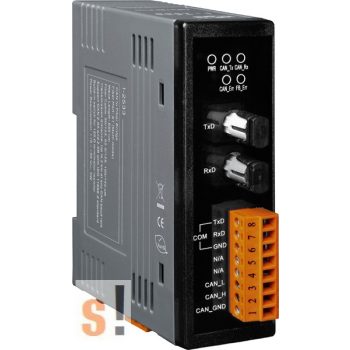

Képek
CAN Interfész
Module típus
Baud Rate (bps)	10 k ~ 1 M and user-defined	10 k ~ 1 M and user-defined	10 k ~ 1 M and user-defined	10 k ~ 1 M and user-defined	10 k ~ 500 k
CAN Filter	Yes	Yes	Yes	Yes	No
120Ω Terminator Resistor	Built-in	Built-in	Built-in	Built-in	Built-in
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Specification	ISO 11898-2, CAN 2.0A and CAN 2.0B
Propagation Delay	190μs ^*note2	190μs ^*note2	190μs ^*note2	250μs ^*note2	< 120 ns
Fiber Interface
Type	SC Duplex type ; Single mode ; 100Base-FX;		SC type ; Single mode ; 100Base-FX;	ST (Multi-mode)	ST (Multi-mode)
Wave Length (nm)	1310		TX: 1310, RX: 1550 for I-2533CS-A TX: 1550, RX: 1310 for I-2533CS-B	850	850
Fiber Cable (μm)	8.3/125, 8.7/125, 9/125 or 10/125	8.3/125, 8.7/125, 9/125 or 10/125	8.3/125, 8.7/125, 9/125 or 10/125	50 / 125, 62.5 / 125, 100 / 140	62.5 / 125
Max. Fiber Distance (km)	30 km	60 km	15 km	2 km	1.4 km
Misc.
Topology	One-to-One One-to-Many	One-to-One One-to-Many	One-to-One One-to-Many	One-to-One	One-to-One
Work with Fiber Switch	Yes	Yes	Yes	No	No
Extend CAN bus Distance	Yes	Yes	Yes	Yes	No
Repeat CAN bus signal	Yes	Yes	Yes	Yes	No
Integrate two different networks	Yes	Yes	Yes	Yes	No

*note1:
The I-2533CS-A and I-2533CS-B are a couple and must be used in pairs in CAN Bus applications.

*note2:
The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.
