M-7018Z-G/S # I/O Module/Modbus RTU/10AI/TC+Type L-M/DB-1820, ICP DAS

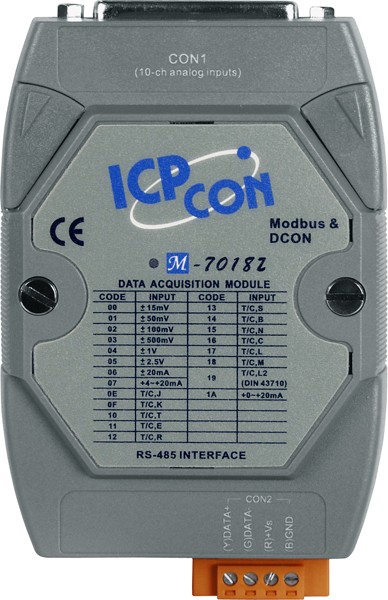

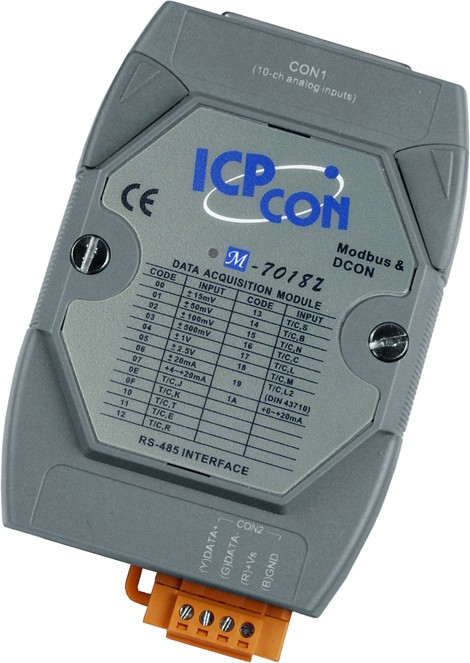

The I-7018Z/M-7018Z is a 10-channel universal Analog Input module with an RS-485 interface that is especially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the I-7018Z/M-7018Z also supports voltage and current input. The voltage input range can be from +/-15 mV to +/-2.5 V. Up to 10 different types of Analog Input can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input channels. The M-7018Z provides additional support for both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.

Building Automation Factory Automation Machine Automation Remote Maintenance Remote Diagnosis Testing Equipment

Models I-7018Z M-7018Z Analog Input Channels 10 Wiring Differential Sensor Types Thermocouple J, K, T, E, R, S, B, N, C, L, M, LDIN43710 Voltage ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) Resolution 16-bit Accuracy ±0.1% of FSR Sampling Rate 10 Hz (Total) Input Impedance > 400 kΩ Common Voltage Protection ±200 VDC Individual Channel Configuration Yes Overvoltage Protection 240 Vrms Open Wire Detection (for thermocouple only) Yes Temperature Output Consistency Yes Stable Temperature Output in the Field Yes

Models I-7018Z M-7018Z Communication Interface RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) Baud Rate 1200 to 115200 bps Protocol DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal EFT (IEC 61000-4-4) ±4 kV to Power Surge (IEC 61000-4-5) ±0.5 kV for Power Line Power Reverse Polarity Protection Yes Input Range +10 ~ +30 VDC Consumption 1.0 W Mechanical Dimensions (L x W x H) M-7018Z 116 mm x 73 mm x 35 mm DB-1820 78 mm x 65 mm x 22 mm DN-1822 103 mm x 96 mm x 27 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 to +75°C Storage Temperature -40 to +85°C Humidity 10 to 95% RH, Non-condensing

Thermocouple Type Type Range°C J -210 ~ +760 K -270 ~ +1372 T -270 ~ +400 E -270 ~ +1000 R 0 ~ +1768 S 0 ~ +1768 B 0 ~ +1820 N -270 ~ 1300 C 0 ~ 2320 L -200 ~ +800 M -200 ~ +100 L (DIN43710) -200 ~ +900

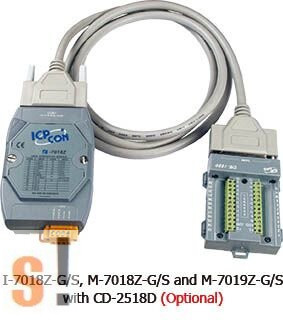

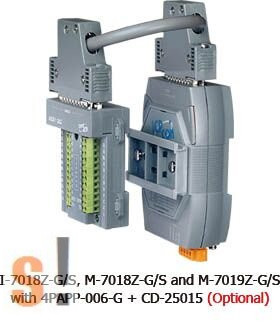

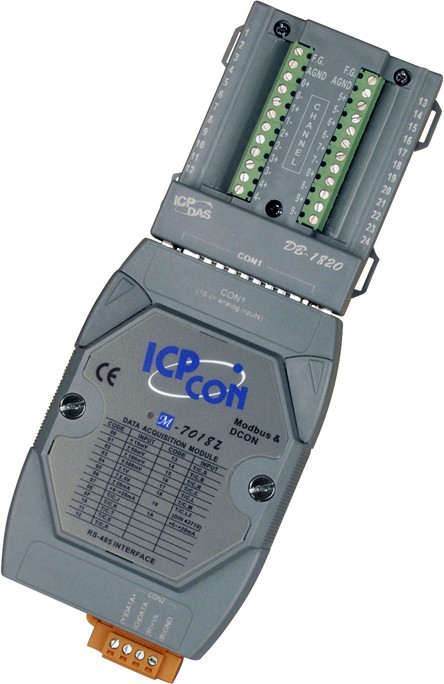

I-7018Z-G/S CR 10-channel Thermocouple Input Module using the DCON Protocol (Gray Cover) (RoHS) Includes an I-7018Z Module and a DB-1820 Daughterboard. I-7018Z-G/S2 CR 10-channel Thermocouple Input Module using the DCON Protocol (Gray Cover) (RoHS) Includes an I-7018Z Module, a DN-1822 Daughterboard and a CD-2518D 1.8 m Cable. M-7018Z-G/S CR 10-channel Thermocouple Input Module using the DCON and Modbus Protocols (Gray Cover) (RoHS) Includes an M-7018Z Module and a DB-1820 Daughterboard. M-7018Z-G/S2 CR 10-channel Thermocouple Input Module using the DCON and Modbus Protocols (Gray Cover) (RoHS) Includes an M-7018Z Module, a DN-1822 Daughterboard and a CD-2518D 1.8 m Cable. I-7018Z-G/S = I-7018Z + DB-1820 (The DB-1820 connects directly to the I-7018Z) M-7018Z-G/S = M-7018Z + DB-1820 (The DB-1820 connects directly to the M-7018Z) I-7018Z-G/S2 = I-7018Z + DN-1822 (The DN-1822 connects directly to the I-7018Z) M-7018Z-G/S2 = M-7018Z + DN-1822 (The DN-1822 connects directly to the M-7018Z)
