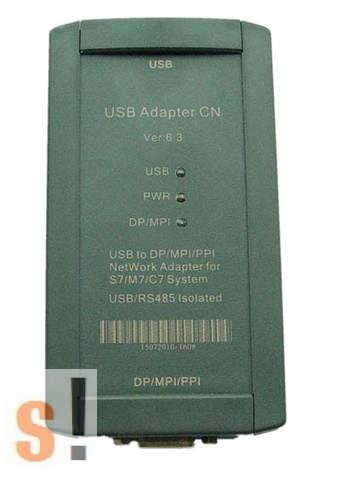

USB Adapter CN is a high-tech adapter, support USB to PROFIBUS/MPI/PPI communication,
USB Adapter CN adopt power supply from USB port,use the low-power low-voltage chip,even if
the USB port power low down to 4V,it still can ensure the stable and reliable work of the adapter.
RS485 interface(PROFIBUS/MPI/PPI) of USB Adapter CN is the standard interface as same as
the CP5611/CP5512, the 6PIN and 5PIN of DB9F socket output 5VDC power which can supply the
power for the termination resistors. Besides it can be used for Simatic S7-200/300/400 PLC,it also can be
used for HMI,CNC etc other third party equipments,support long distance communication,allowed
cable length meet the Simatic profibus standard.
The network type and baud rate which USB Adapter CN supports:
|
Transmission rate
|
MPI
|
PPI
|
PROFIBUS-DP
|
|
9.6Kbps
|
-
|
√
|
√
|
|
19.2Kbps
|
√
|
√
|
√
|
|
45.45Kbps
|
-
|
-
|
√
|
|
93.75Kbps
|
-
|
-
|
√
|
|
187.5Kbps
|
√
|
√
|
√
|
|
500Kbps
|
-
|
-
|
√
|
|
1.5Mbps
|
√
|
-
|
√
|
LED indicator
|
Indicator
|
Status
|
|
|
|
|
|
Light On
|
Flash
|
|
USB
|
Adapter is normally connected to PC
|
USB port has data transfer
|
|
PWR
|
Adapter passed the self-test, work
normally
|
hardware fault
|
|
DP/MPI
|
On line
|
DP/MPI/PPI port has data transfer
|
RS485 interface of USB Adapter CN is DB9F socket,the signal array meets PROFIBUS/MPI/PPI standard,as shown in the following table:
|
Pin
|
Signal
name
|
Description
|
Input/Output
|
|
1
|
NC
|
No use
|
-
|
|
2
|
NC
|
No use
|
-
|
|
3
|
LTG_B
|
RS485 signal positive
|
Input/Output
|
|
4
|
RTS_AS
|
No use
|
-
|
|
5
|
M5V
|
RS485 signal ground and
5VDC power ground
|
Input
|
|
6
|
P5V
|
Output Voltage, 5VDC/50mA,provide the power for
termination resistors.
|
Output
|
|
7
|
NC
|
No use
|
|
|
8
|
LTG_A
|
RS485 signal negative
|
Input/Output
|
|
9
|
RTS_PG
|
No use
|
-
|
|
Shell
|
Shielding
|
Shield ground (chassis ground)
|
USB Adapter CN power is provided by the USB port, voltage is +5VDC±15%,150mA,not from RS485 interface of PLC.Thus the adapter can also be used for the other DP/MPI/PPI interfaces without 24VDC power output.Besides the RS485 interface of USB Adapter CN is as same as Siemens CP5611/CP5512,you can insert the profibus connector to achieve the long distance communication,and provide the power for the termination resistors of profibus connector. Different baud rates allowed the largest communication distance meet the PROFIBUS standard,as shown in the following table:
|
Baud Rate
|
The largest cable length (Meter)
|
|
9.6 to 187.5Kbps
|
1000
|
|
500Kbps
|
400
|
|
1.5Mbps
|
200
|
