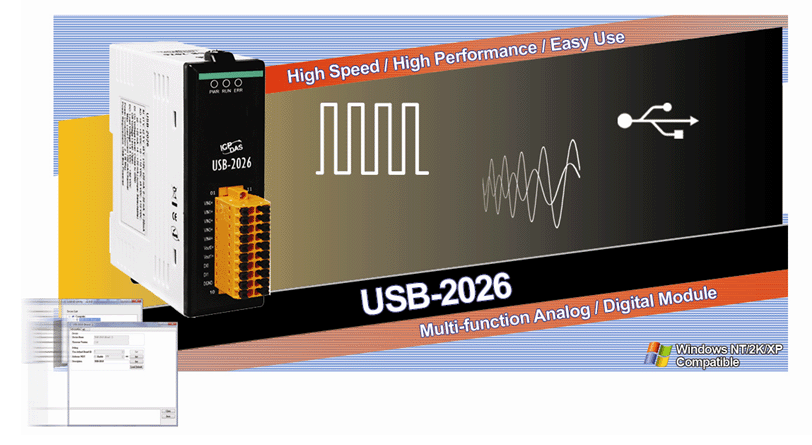

USB-2026 # USB I/O Modul/2x DI/2x DO/5x AI/2x AO, ICP DAS, ICP CON

The USB-2026 is a multifunction module that includes 5 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels and compatibles with USB 2.0 full-speed. It equips small size, portable, USB bus powered, various input type features to help user build up own project easily and quickly. Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can use these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc. ICP DAS USB I/O provides 10kS/s data acquisition functionality. User can apply this to real-time demanded application, ex: noise measurement. The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms.

Automation Measurement and testing Laboratory research

USB-2K Utility USB-2K Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB IO series modules without programming.

USB module configuration I/O configuration Log Data analysis Easy to test

VB/C++/C#.NET/VB.NET SDK ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.

Analog Input Channels 5 Differential Input Type Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA Resolution Normal Mode 14 bit Fast Mode 12-bit Sampling Rate Normal Mode 10 Hz total Fast Mode 200 Hz total Accuracy Normal Mode ±0.1% FSR Fast Mode ±0.5 % FSR Zero Drift ±20 μV/°C Span Drift ±25 ppm/°C Input Impedance Voltage: 20 MΩ Current: 135 Ω Overvoltage Protection Voltage: 120 VDC Current: N/A Overcurrent Protection Voltage: N/A Current: Yes, 50 mA at 110 VDC Analog Output Channels 2 Range (Jumper Selectable) Voltage: +0~+5 VDC, +0~+10 VDC, ±5 VDC, ±10 VDC Current: +0~+20 mA, +4~+20 mA Resolution 12-bit Accuracy ±0.1% of FSR Output Capacity Voltage Output Capability 10 V @ 20 mA Open Wire Detection Yes, for 4 ~ 20 mA only Power On Value Yes Safety Value Yes Digital Input Channel 2 Type Dry Contact (Source) On Voltage Level Close to GND Off Voltage Level Open Input Impedance 10 KΩ, 0.5 W Counters Channels 2 Max. Count 4,294,967,285 (32-bit) Max. Input Frequency 100 Hz Min. Plus Width 10 ms Overvoltage Protection ±57 VDC Digital Output Channels 2 Type Isolation Open Collector (Sink) Max. Load Current 700mA/Channel Load Voltage +3.5 ~ 50 VDC Overvoltage Protection ±60 VDC Overload Protection 1.4 A (with short-circuit protection) Short Circuit Protection Yes Power-on Value Yes, Programmable Safe Value Yes, Programmable Communication Interface USB 2.0 Full-Speed Watchdog 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) LED Indicators System LED Indicators 3 LED as Power, Run and Error EMS Protection ESD (IEC 61000-4-2) 4 kV contact for each terminal 8 kV air for random point Mechanical Dimensions (W x L x H) 33 mm × 78 mm × 107 mm Environmental Operating Temperature -25 ~ +75 °C Storage Temperature -40 ~ +85 °C Humidity 10 ~ 95% RH, non-condensing

USB-2026 5-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module
