Specifications [UP SQUARED 6000 EDGE]
| SYSTEM |
| CPU |
Intel® Atom® X6413E / X6425RE, Celeron® N6210 (no PSE), Pentium® J6426 Processor SoC |
| MEMORY |
Onboard DDR4, Max 8GB
Single Channel: 2 GB
Dual Channel: 4 GB, 8 GB |
| GRAPHICS |
Intel® UHD Graphics |
| STORAGE |
Onboard eMMC 32G/64G
Optional with M.2 2280 M-key x 1, SATA3 x 1 |
| ETHERNET |
GbE x 1, 2.5GbE x 1
Atom: Intel® i210-IT, i225-IT
PC Client: Intel® i211-AT, i225-V |
| WIFI/BT |
Optional with M.2 2230 E-key x 1 |
| EXPANSION SLOT |
40 pin GPIO x 1
M.2 2230 E-key x 1
M.2 2280 PCIe Gen3.0x2 M-key x 1
SATA3 x 1
M.2 3052 B-key x 1
Nano SIM slot x 1
TPM 2.0 (Limited to Atom series) |
| SECURITY |
- |
| OS SUPPORT |
Microsoft Windows 10 (full), Windows IOT Core
Linux: Ubuntu 20.04 LTS, Yocto 3.1 |

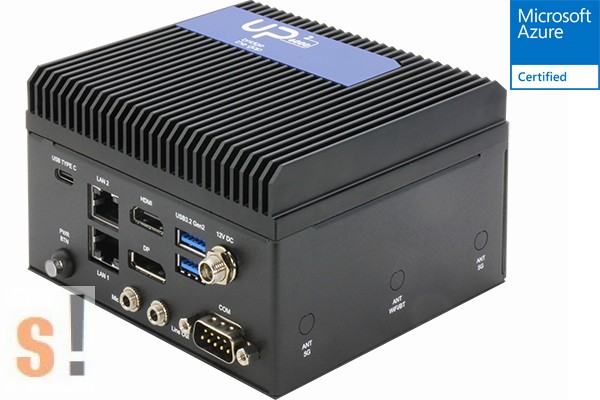

| I/O PLACEMENTS |
| USB |
USB 3.2 Gen 2 Type A x 2
USB 3.2 Gen 2 Type C (support OTG) x 1 (Limited to Atom series) |
| DISPLAYPORT |
HDMI 2.0b x 1
DP 1.2 x 1 |
| ETHERNET |
RJ45 x 2 |
| COM |
RS232/RS422 x 1 (Limited to Atom series) |
| AUDIO |
Line out x 1
Mic in x 1 |

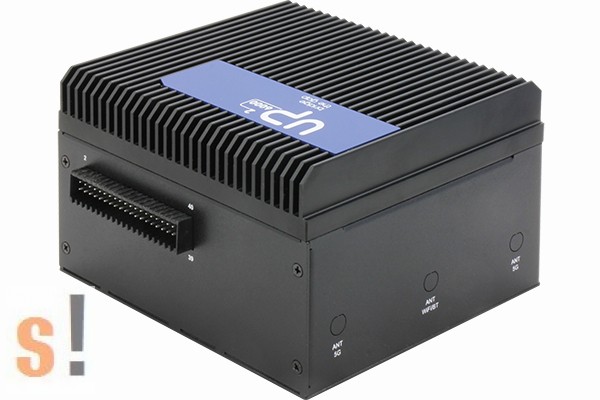

| GPIO |
- |
| POWER SUPPLY |
| POWER REQUIREMENT |
- |
| POWER SUPPLY TYPE |
- |
| POWER CONSUMPTION (TYPICAL) |
- |
| MECHANICAL |
| MOUNTING |
- |
| DIMENSIONS (W X H X D) |
- |
| NET WEIGHT |
- |
| GROSS WEIGHT |
2.31lb (1.05Kg) |
| ENVIRONMENT |
| OPERATING TEMPERATURE |
With Heatsink: 32°F ~ 140°F (0°C ~ 60°) with air flow 0.5m/s |
| OPERATING HUMIDITY |
0% ~ 90% relative humidity, non-condensing |
| STORAGE TEMPERATURE |
- |
| MTBF |
- |
| CERTIFICATION |
CE/FCC Class A, RoHS Compliant, REACH |
Ordering Information [UP SQUARED 6000 EDGE]
| PART NUMBER |
UPN-EDGE-EHLCN2-A10-0232 |
UPN-EDGE-EHLPJ4-A10-0432 |
UPN-EDGE-EHLX4E-A10-0432 |
UPN-EDGE-EHLX4RE-A10-0864 |
| CPU |
PC Client: N6210 (No PSE) |
PC Client: J6426 |
Embedded: X6413E |
Industrial: X6425RE |
| MEMORY |
2GB |
4GB |
4GB |
8GB |
| STORAGE |
32GB |
32GB |
32GB |
64GB |
| USB |
USB 3.2 Type C : No |
USB 3.2 Type C : No |
USB 3.2 Type C : Yes |
USB 3.2 Type C : Yes |
| COM PORT |
No |
No |
Yes |
Yes |
| TPM |
TPM 2.0: No |
TPM 2.0: No |
TPM 2.0: Yes |
TPM 2.0: Yes |
| LAN |
i211-AT / i225-V |
i211-AT / i225-V |
i210-IT / i225-IT |
i210-IT / i225-IT |
Packing List
- 40Pin Phoenix Connector
- Quick Start Guide

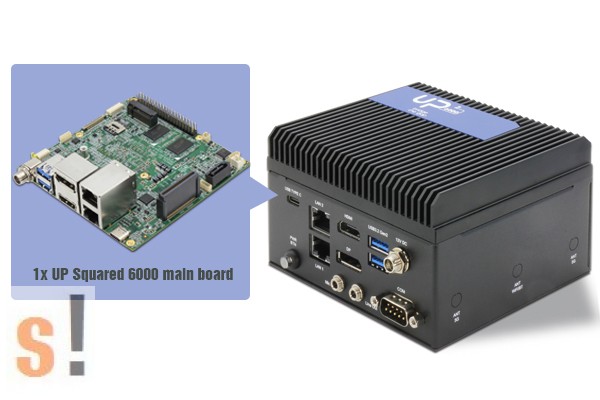

- UP Squared 6000 Edge
Optional Accessories
| Part Number |
Description |
| 1255X00032 |
12VDC/6A Adapter |
| 1702031803 |
Power cord for EU |
| 1702031802 |
Power cord for US |
| 170203180J |
Power cord for UK |
| 170203180E |
Power cord for Japlan |
| 170203180B |
Power cord for China |
| 1702031811 |
Power cord for Taiwan |
| 9651926001 |
M.2 2230 WiFi Kit.802.11ac.2.4G/5G,W/BT w/2 cable & antenna |
| 9741364A00 |
Wireless LAN Kit M.2 2230 802.11ac/a/b/g/n + BT4.0,2T2R,with 2 sets of cable & antenna |
| UP-SATAKIT-A10-0001 |
SATA KIT for UPN-EDGE-APL01/UPN-EDGE-EHL01 |
|
