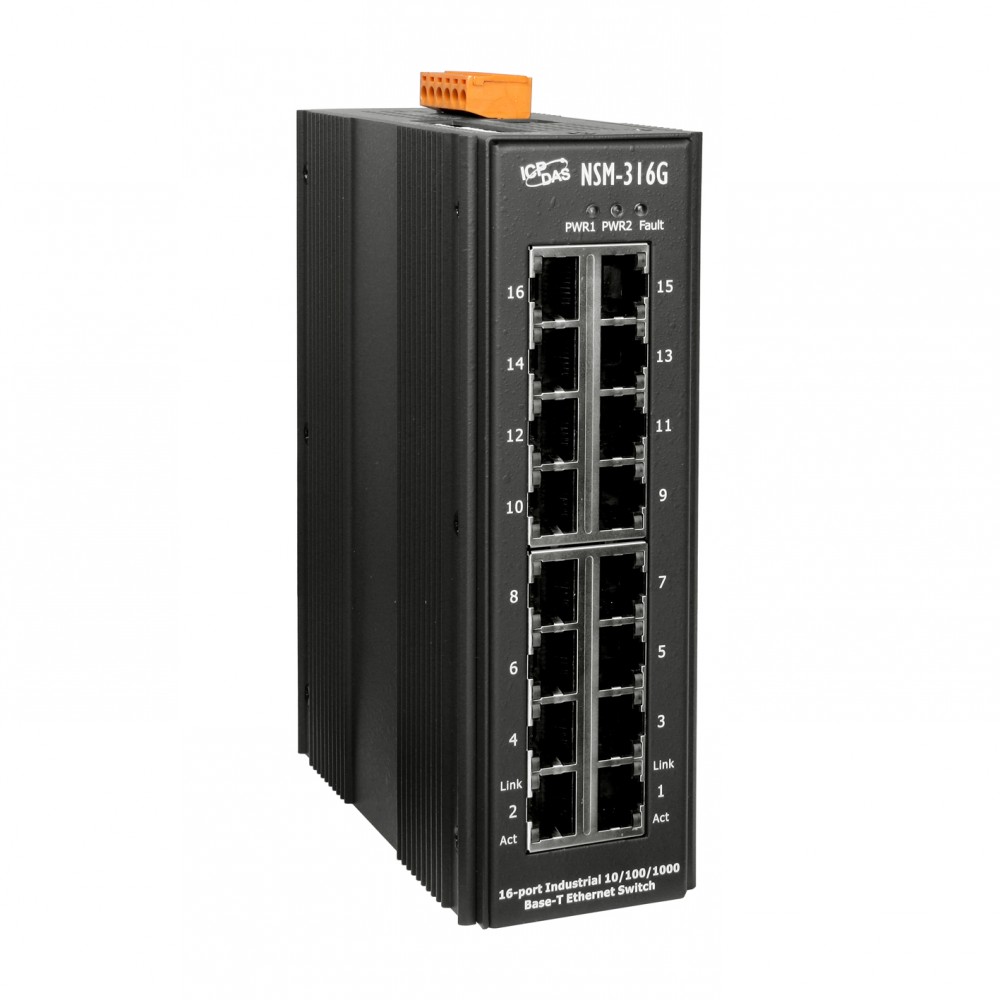

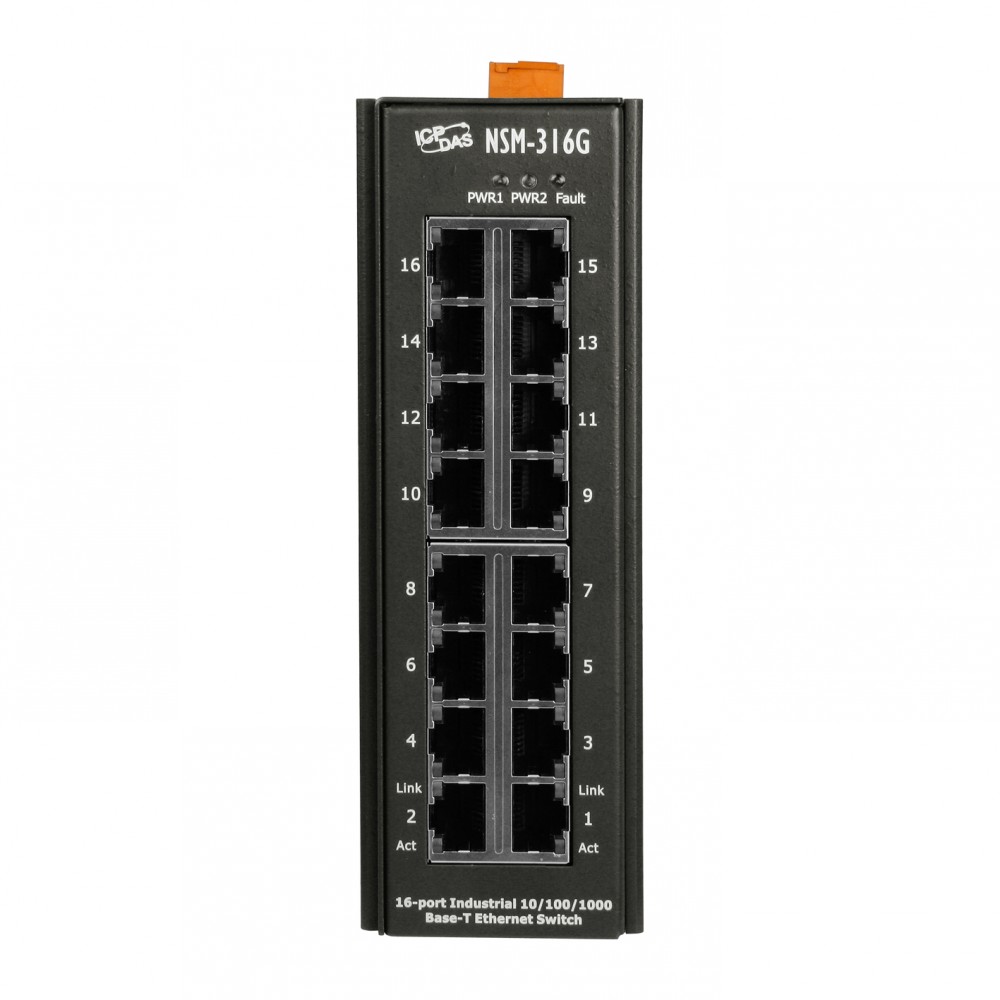

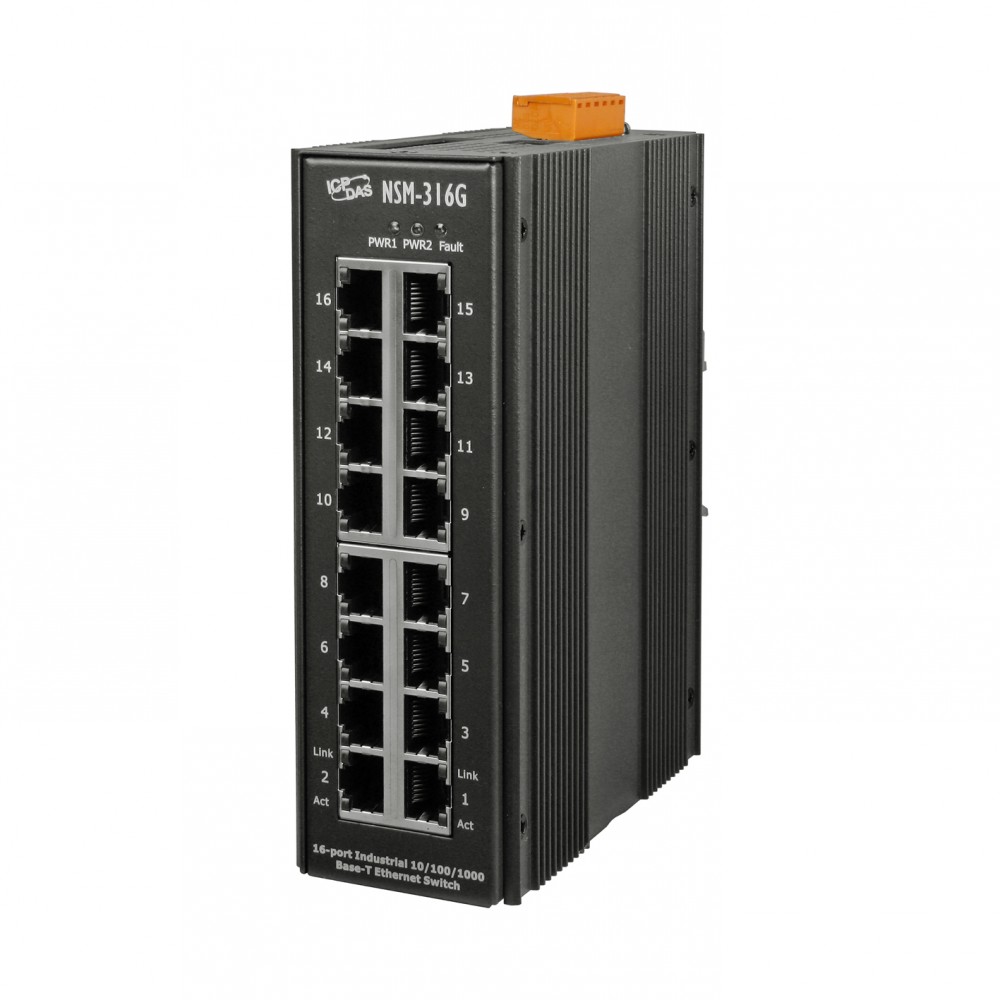

ICP DAS NSM-316G # 16-port Gigabit Ethernet Unmanaged Switch
| Technology |
| Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type |
Store & forward, wire speed switching |
| MAC Addresses |
8K |
| Packet buffer memory |
512KByte |
| Jumbo Frames |
9216 Byte |
| Flow Control |
IEEE802.3x flow control, back pressure flow control |
| Interface |
| RJ-45 Ports |
10/100/1000 BaseT(X), 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection |
| LED Indicators |
PWR1, PWR2, FAULT, Link, Act |
| Ethernet Isolation |
1500 Vrms 1 minute |

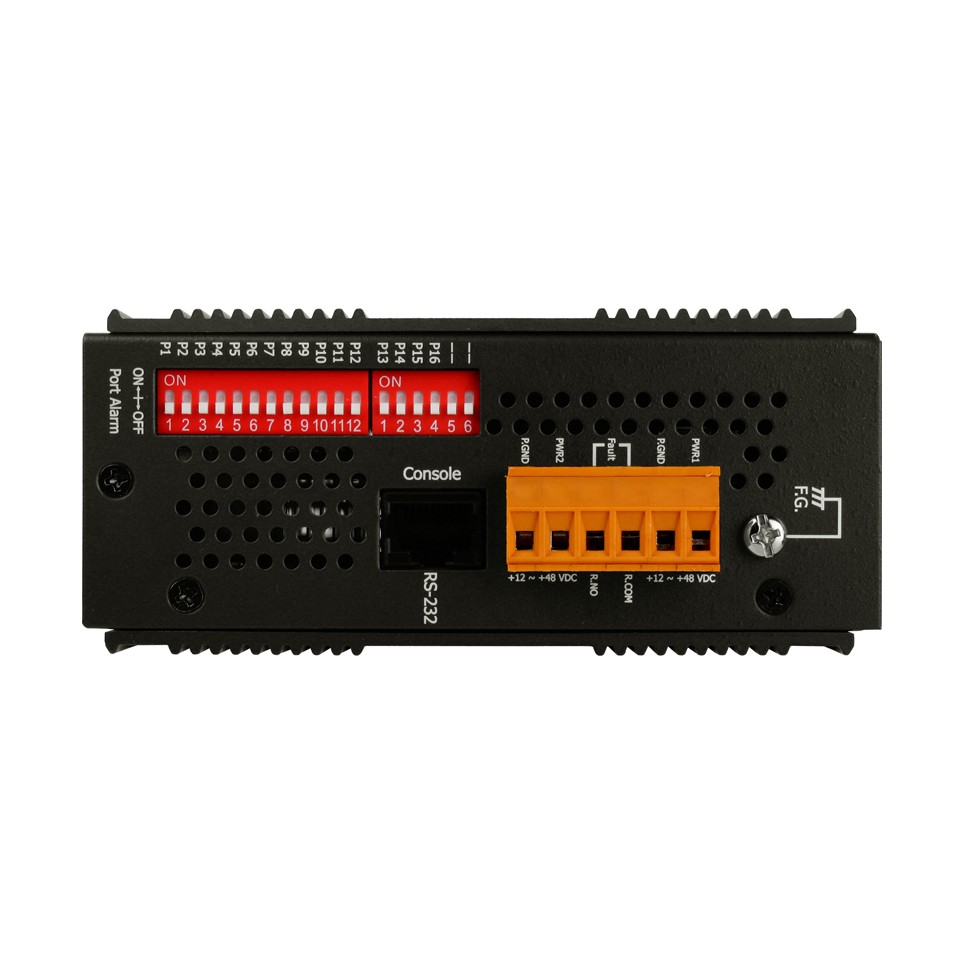

| DIP Switch |
Ports loss link alarm mask |
| Console Port |
Debugging, Monitoring, Setting |
| Power Input |
| Redundant Input Range |
Flexible input +24/+48 VDC Nominal. (+12 ~ +48 VDC) |
| Power Consumption |
0.16A @ 48VDC Idle without loading; 0.2A @ 48VDC with full loading (0.12 W per ports)
0.31A @ 24VDC idle without loading; 0.39A @ 24VDC with full loading (0.12 W per ports) |
| Alarm Contact |
One relay output with current carrying capacity of 1A @ 30 VDC |
| Protection |
Power reverse polarity protection |
| Connector |
6-Pin Removable Terminal Block (Power & Relay) |
| Mechanical |
| Chassis |
Metal with an IP30 ingress protection rating |
| Dimensions (W x L x H) |
51 mm x 154 mm x 118 mm |
| Installation |

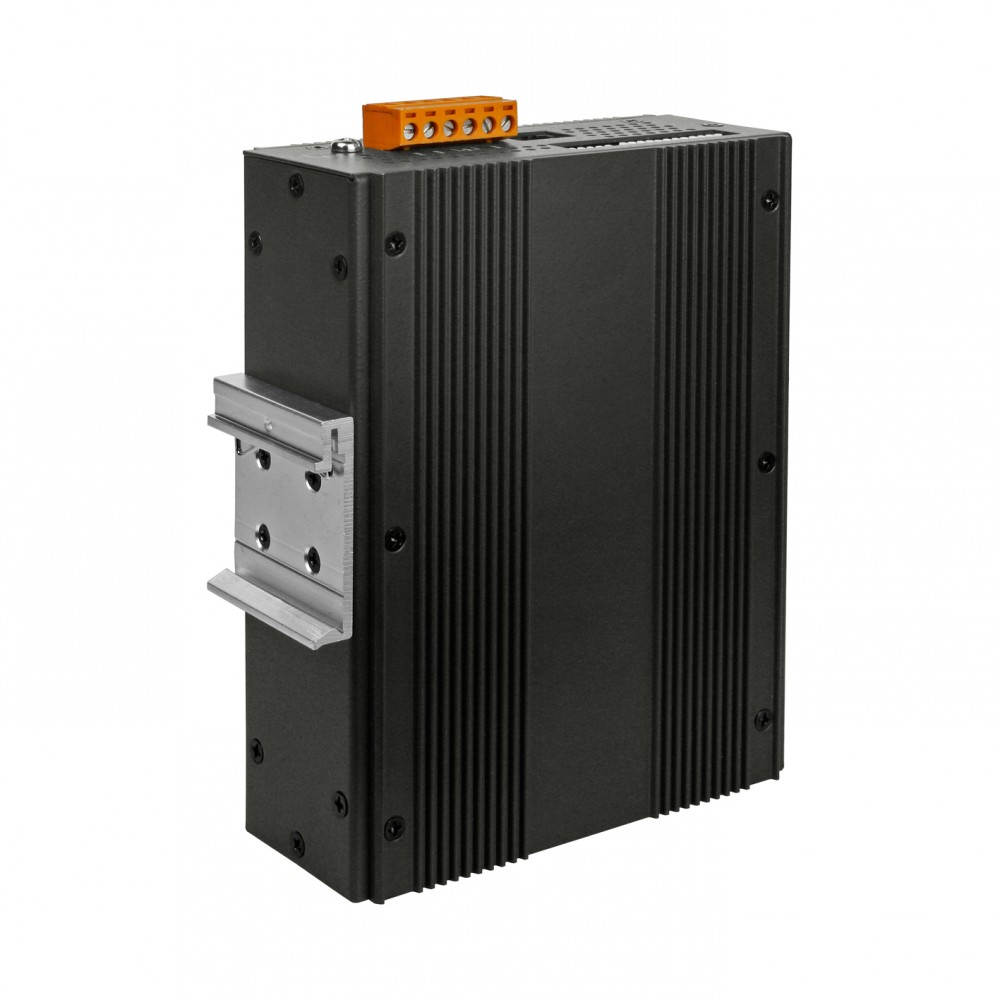

DIN-Rail or Wall Mounting (with optional kit) |
| Environmental |
| Operating Temperature |
-40 °C ~ + 75 °C (-40 °F to 167 °F) |
| Storage Temperature |
-40 °C ~ + 85 °C (-40 °F to 185 °F) |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
|
| |
|
| NSM-316G CR |
16-PORT GBE Ethernet Unmanaged Switch (RoHS) |
|
| |
|
