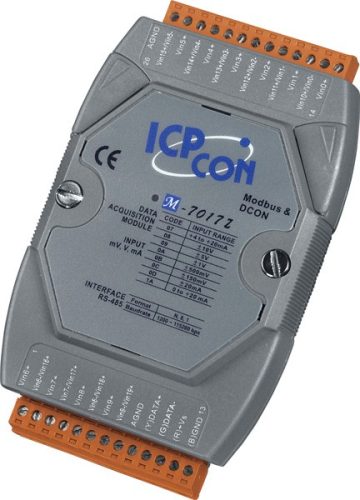

I-7017Z-G CR |
10/20-channel Analog Input Module with High Voltage Protection using the DCON Protocol (Gray Cover) (RoHS) |

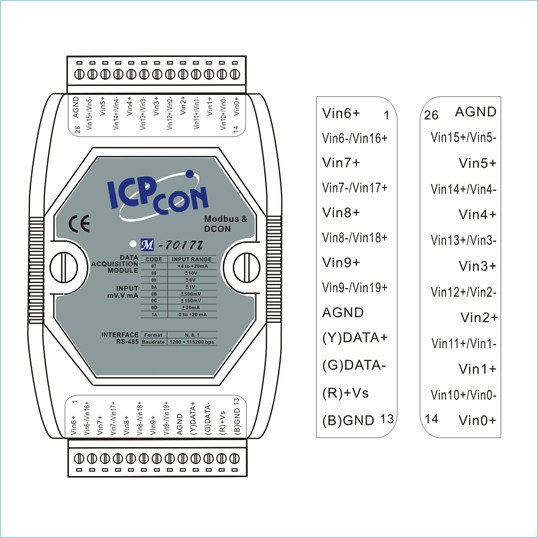

M-7017Z-G CR |
10/20-channel Analog Input Module with High Voltage Protection using the DCON and Modbus Protocols (Gray Cover) (RoHS) |
|
|
The I-7017Z is an Analog Input module that includes 10 differential or 20 single-ended Analog Input channels. The module provides a programmable input range on all Analog Input channels. Each Analog Input channel can be configured for an individual input range, providing a high overvoltage protection of 240 Vrms and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input is jumper selectable. The sampling rate of the I-7017Z is adjustable can be set to either fast or normal mode. The module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 KV ESD protection as well as 3000 VDC intra-module isolation. The M-7017Z supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017Z.
|
|
|
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
|
|
|
Models |
I-7017Z |
M-7017Z |
Analog Input |
Channels |
10/20 |
Wiring |

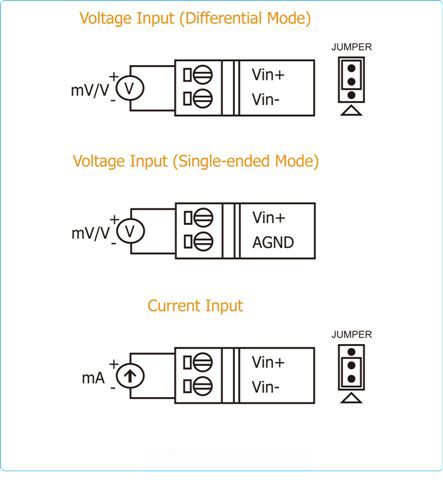

10 Differential or 20 Single-ended (Software Selectable - see Note 1) |
Sensor Types |
Voltage |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V |
Current |
±20 mA , 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
Resolution |
16-bit |
Accuracy |
Normal Mode |
±0.1% of FSR |
Fast Mode |
±0.5% of FSR |
Sampling Rate |
Normal Mode |
10 Hz |
Fast Mode |
60 Hz |
Input Impedance |
Voltage |
2 MΩ (Differential) |
1 MΩ (Single-ended) |
Current |
125 Ω (Differential) |
Common Voltage Protection |
±200 VDC |
Individual Channel Configuration |
Yes |
Overvoltage Protection |
240 Vrms |
Overcurrent Protection |
Yes, 50 mA at 110 VDC |
Temperature Output Consistency |
Yes, 400 VDC |
Open Wire Detection for +4 ~ +20 mA |
Yes |
|
Note 1: Differential wiring can be used for both voltage input and current input. Single-ended wiring can only be used for voltage input |
|
|
Models |
I-7017Z |
M-7017Z |
Communication |
Interface |
RS-485 |
Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
Format |
N, 8, 1 |
Baud Rate |
1200 to 115200 bps |
Protocol |
DCON |
Modbus RTU, DCON |
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
LED Indicator/Display |
System LED Indicator |
Yes, 1 as Power/Communication Indicator |
I/O LED Indicator |
- |
7-Segment LED Display |
- |
Isolation |
Intra-Module Isolation, Field-to-Logic |
3000 VDC |
EMS Protection |
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
EFT (IEC 61000-4-4) |
±4 kV for Power Line |
Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
Power |
Reverse Polarity Protection |
Yes |
Input Range |
+10 ~ +30 VDC |
Consumption |
2.0 W |
Mechanical |
Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
Installation |
DIN-Rail or Wall Mounting |
Environment |
Operating Temperature |
-25 to +75°C |
Storage Temperature |
-40 to +85°C |
Humidity |
10 to 95% RH, Non-condensing |
|
|
|
I-7017Z-G CR |
10/20-channel Analog Input Module with High Voltage Protection using the DCON Protocol (Gray Cover) (RoHS) |
M-7017Z-G CR |
10/20-channel Analog Input Module with High Voltage Protection using the DCON and Modbus Protocols (Gray Cover) (RoHS) |
|
|
