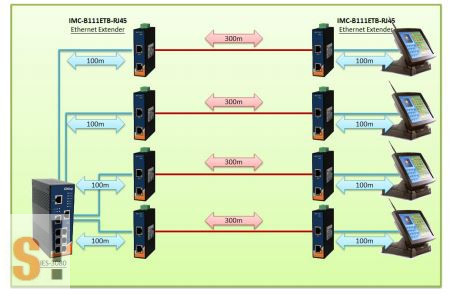

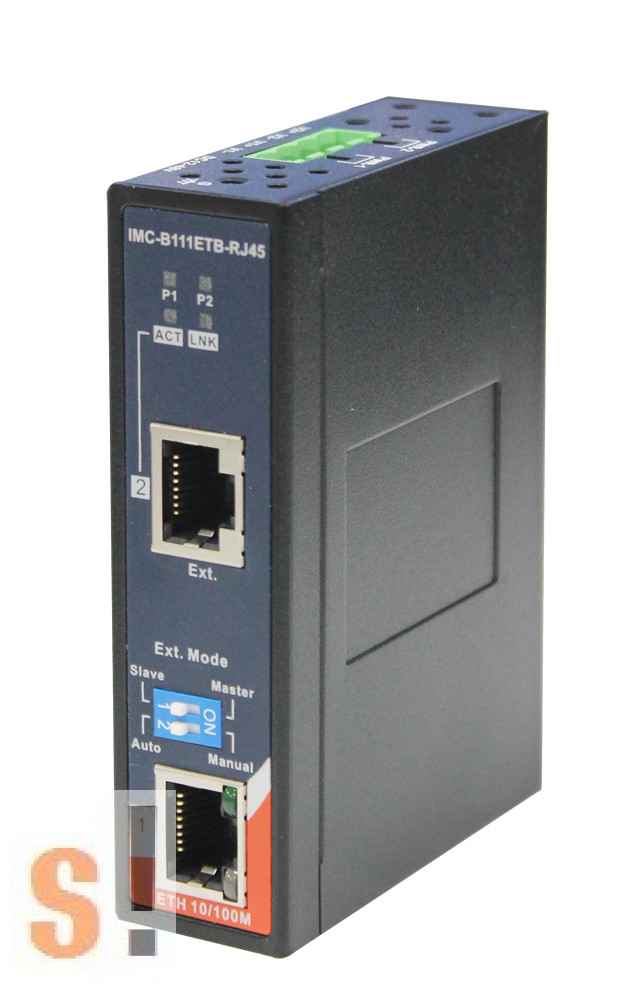

IMC-B111ETB-RJ45 is a cost-effective solution for extending an Ethernet connection beyond its inherent distance limitation. IMC-B111ETB-RJ45 can extend the distance to 300 meters using a UTP cable or 200meters using a 24AWG cable. IMC-B111ETB-RJ45 supports 2/4/8-wired auto detecting transmission. IMC-B111ETB-RJ45 provides a wide operating temperature range from -40~75°C, making it suitable for harsh operating environments.
| Physical Ports |
|
| 100Base-TX Port in RJ45 Auto MDI/MDIX |
1 |
| 100Mbps Ethernet Extender Ports in RJ45 |
1 (support 2/4/8-wired auto detecting) |
| Technology |
|
| Ethernet Standards |
IEEE 802.3u for 100Base-TX |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power indicator |
Store-and-Forward |
| 10/100Base-T(X) RJ45 port indicator |
Green LED for Link indicator. Amber LED for Ack indicator |
| Ethernet Extender Indicator |
Green LED for Link indicator. Amber LED for Ack indicator. |
| DIP-Switch |
|
| DIP-Switch Setting |
DIP-switch 1 for master/slave mode select : (On) Master mode, (Off) slave mode
DIP-switch 2 for Auto/Manual mode select :
(On) Manual mode ~ Extender need to manual setting master mode or slave mode follow the DIP-switch 1 setting
(Off) Auto mode ~ Extender will be auto negotiation and auto setting master or slave mode |
| Power |
|
| Input power |
Dual 12 ~ 48VDC power inputs. |
| Power consumption (Typ.) |
2 Watts |
| Overload current protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |

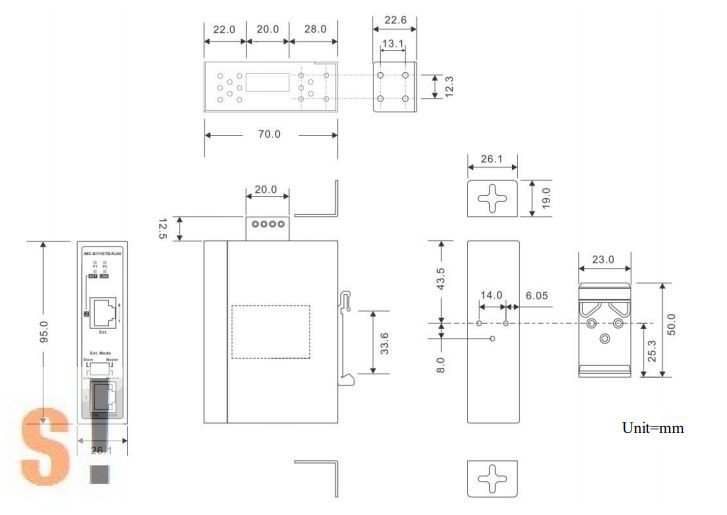

| Dimension (W x D x H) |
26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch) |
| Weight (g) |
242 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
|
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-31 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
|
|
|
