GW-7557 # Profibus - HART átjáró, gateway, ICP DAS

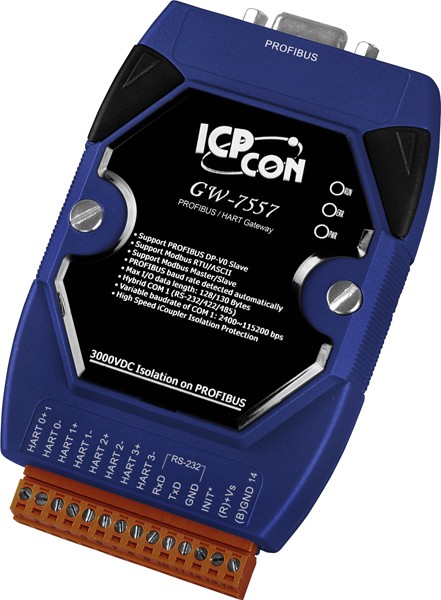

ICP DAS GW-7557 # Profibus - HART átjáró

The GW-7557 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the HART slave devices. These HART slave devices may be a transmitter, an actuator, a current output device and so forth. In addition, we also provide the utility software for users to configure the GW-7557. By using this module, users can put their HART slave devices into PROFIBUS network very easily.
Features
Protocol & Hierarchy DP-V0 Slave Supports PROFIBUS Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 Transmission Rate Setting detected automatically Max Input Data Length 240 Bytes Max Output Data Length 240 Bytes Address Setting 0~126 set by DIP switch or EEPROM Supports HART Mode point-to-point / multi-drop Support HART Master Allow two HART Masters Support HART Channel 4 channels Support HART Frame Short/Long frame Support HART modules Connecting up to 15 HART modules Support HART Burst mode YES Indicators PWR, ERR, and RUN LEDs Network Isolation Protection 2500 Vrms High Speed iCoupler DC Isolation Protection 3000 VDC on PROFIBUS side
Hardware Specifications
Hardware CPU 80186, 80 MHz or compatible SRAM/Flash/EEPROM 512 KB / 512 KB / 16 KB Watchdog Watchdog IC CPU built-in ESD Protection 4 kV class A PROFIBUS Interface Controller Profichip VPC3+C Transceiver ADI ADM2486 Connector 9-pin female D-Sub Baud Rate (bps) 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M Transmission Distance (m) Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic Protocol DP-V0 HART Interface HART Interface 8-pin screwed terminal block HART Channel 4 channels UART Interface COM RS-232 COM Connector 3-pin screwed terminal block (RxD, TxD, GND) Baud Rate (bps) Up to 115200 Data bit 7, 8 Stop bit 1, 2 Parity None, Even, Odd LED Round LED PWR LED, RUN LED, ERR LED POWER Power supply Unregulated +10 ~ +30 VDC Protection Power reverse polarity protection, Over-voltage brown-out protection Power Consumption 2.0 W Mechanism Installation DIN-Rail Dimensions 72 mm x 33 mm x 119 mm (W x L x H) Environment Operating Temp. -25 ~ 75℃ Storage Temp. -30 ~ 85℃ Humidity 5 ~ 95% RH, non-condensing
Ordering Information
GW-7557-B CR PROFIBUS/HART Gateway (RoHS)
