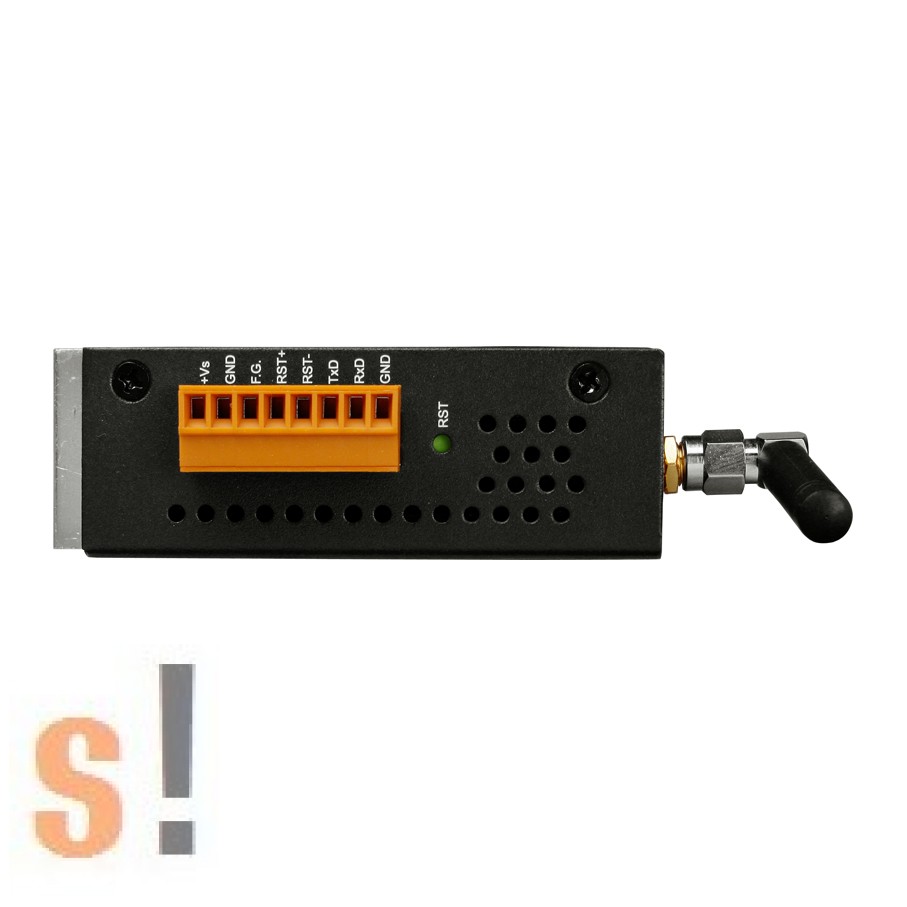

GTM-203M-3GWA CR # Ipari 3G WCDMA Modem/Quad-band/GSM/RS-232/USB/fém ház, ICP DAS

Cikkszám:

GTM-203M-3GWA_CR

GTM-203M-3GWA CR # IPari 3G WCDMA Modem/Quad-band/GSM/RS-232/USB, ICP DAS
GTM-203M-3GWA CR # Industrial Quad-band 3G WCDMA Modem (Include GTM-203M-A Accessory) (RoHS)

Industrial design, making it a reliable cellular solution for data collection and transmission
Reliable GSM/GPRS/EDGE/WCDMA/HSPA network connectivity, providing fast and cost-effective long-range wireless applications
Designed for Data, SMS and Voice Applications
Support TCP Server, TCP Client, UDP Client Connection stack
Support Standard AT Commands
A Digital Input Channel for Resetting the System
LED Indicators for 2G/3G and Power Indication
High Reliability in Harsh Environment
RS-232 Port Supports 9600 bps to 115200 bps
USB 2.0 high speed
USB Driver for Windows, LinPAC (Linux 2.6)
Mount Easily on DIN-Rail

Nem vásárolható!

Részletek

GTM-203M-3GWA CR # IPari 3G WCDMA Modem/Quad-band/GSM/RS-232/USB, ICP DAS
GTM-203M-3GWA CR # Industrial Quad-band 3G WCDMA Modem (Include GTM-203M-A Accessory) (RoHS)

The GTM-203M-3GWA is an industrial Quad-band 3G WCDMA cellular modem with RS-232 and USB interfaces working on frequencies of Quad-band WCDMA 850/900/1900/2100 MHz, and Quad-band GSM 850/900/1800/1900 MHz. The GTM-203M-3GWA enables internet connection over 3G, when 3G service is available. It automatically selects 3G or GPRS continue to work.

Moreover, the GTM-203M-3GWA has the integrated TCP, UDP/IP stack so that even simple controllers with serial communication ports can be connected to the modem without the need for special driver implementation. With the features of GTM-203M-3GWA, the systems can be SMS and 3G/GPRS connection applications with various PLC and PC.

Item	GTM-203M-3GWA
GSM / GPRS Interface
Frequency Band	GSM 850/900/1800/1900 MHz
GPRS Connectivity	GPRS class 12; GPRS station class B
CSD	GSM max. 9.6 kb/s UMTS max. 64 kb/s
Coding Schemes	CS 1, CS 2, CS 3, CS 4
3G Interface
Frequency Band	WCDMA 850/900/1900/2100 MHz
PSD	HSUPA max. 5.76 Mb/s
	HSDPA max. 7.2 Mb/s
	WCDMA max. 384 kb/s Download/Upload link
SMS
SMS	MT, MO, CB, Text and PDU mode
Comm. Interface
COM Port	RxD, TxD, GND
COM Port Baud Rate	9600 bps ~ 115200 bps (default：115200 bps)
USB	USB 2.0 (high speed)
USB Driver Support	Windows XP/Vista/7/8/Server 2012
LED Indicators
Power	Red
3G/GSM	Green
Power
Protection	Power reverse polarity protection
Frame Ground Protection	ESD, Surge, EFT, Hi-Pot
Required Supply Voltage	+10 VDC ~ +30 VDC
Rated Current	30 ~ 15 mA / 10 ~ 30 VDC
Reset Input
Input Type	Isolated, 3750 Vrms
On Voltage Level	+3.5 VDC ~ +30 VDC
Off Voltage Level	+1 VDC max.
Input Impedance	3 kΩ, 0.25W
Mechanical
Casing	Metal
Dimensions (W x L x H)	28 mm x 78.5 mm x 100 mm
Installation	DIN-Rail
Environmental
Operating Temperature	-25℃ to 70℃
Storage Temperature	-40℃ to 80℃
Humidity	5~90% RH, non-condensing
