The ET-7284/PET-7284 is a 32-bit high-speed Counter/Frequency/Encoder input and 4-channel Digital Output module that offers a variety of input mode options, including "Up Counter”, "Frequency Input", "Up/Down Counter", "Direct/Pulse Counter" and "A/B Phase Counter". The mode can be individually configured for all 8 channels, where, for example, some channels can be set to “Up Counter” mode, and other channels can be individually set to “Frequency”, "Up/ Down Counter" or “Encoder input” mode. The built-in programmable low pass filter can be used to eliminate noise where the width of the high/low pulse is narrower than the minimum high/low width of the low pass filter.
The ET-7284/PET-7284 module is equipped with FRAM memory to retain the counter values. FRAM is a type of non-volatile memory that can be used to store written data, even after the module has been powered off. This storage feature can be either enabled or disabled, and the data can be retained for up to 10 years.
| Models |
ET-7284 |
PET-7284 |
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
- |
Yes |
| Protocol |
Modbus TCP, Modbus UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 seconds), Communication (Programmable) |
| LED Indicators |
| for System Running |
Yes |
| for Ethernet Link/Act |
Yes |
| for DI/DO status |
Yes |
| for PoE Power |
- |
Yes |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
- |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
12 ~ 48 VDC |
| Powered from PoE |
- |
Yes, IEEE 802.3af, Class1 |
| Consumption |
4.2 W |
4.4 W |
| Mechanical |
| Dimensions (L x W x H) |
120 mm x 76 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
|
| |
|
| Counter/Frequency/Encoder Input |
| Counter/Frequency/Encoder Input |
4-channel Up/Down Counter (CW/CCW)
4-channel Dir/Pulse Counter (Bi-directional)
4-channel A/B Phase (Quadrant Counting)
8-channel Up Counter
8-channel Frequency |
| Contact |
Wet |
| Sink/Source (NPN/PNP) |
Sink |
| Types |
Counter, Frequency or Encoder |
| Counter/Encoder bits |
32-bit (4,294,967,295) |
| On Voltage Level |
+3.5 VDC ~ +30 VDC |
| Off Voltage Level |
+1 VDC Max. |
| Programmable Low Pass Filter |
1 ~ 32767 μs |
| Individual Channel Configuration |
Yes |
| Max. Speed |
3.5 VDC ~ 10 VDC: 200 kHz
10 VDC ~ 30 VDC: 150 kHz |
| Frequency Accuracy |
1 Hz ~ 200 kHz: ±0.025% of Input Frequency (Note1) |
| Count Value Retention |
Yes |
| Digital Output |
| Channels |
4 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Max. Load Current |
650 mA/channel |
| Load Voltage |
+5 VDC ~ +50 VDC |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
| Note1: |
| Frequency Range |
Frequency Error (typical) |
| 1 Hz ~ 10 Hz |
0.01 Hz |
| 10 Hz ~ 10 KHz |
0.5 Hz |
| 10 KHz ~ 100 KHz |
15 Hz |
| 100 KHz ~ 200 KHz |
30 Hz |
|
| |
|

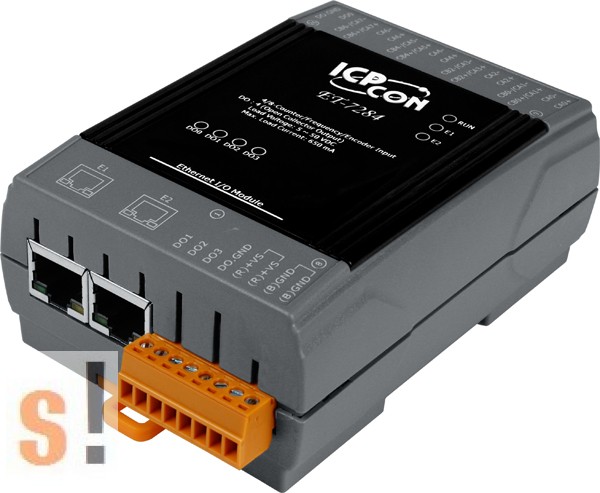

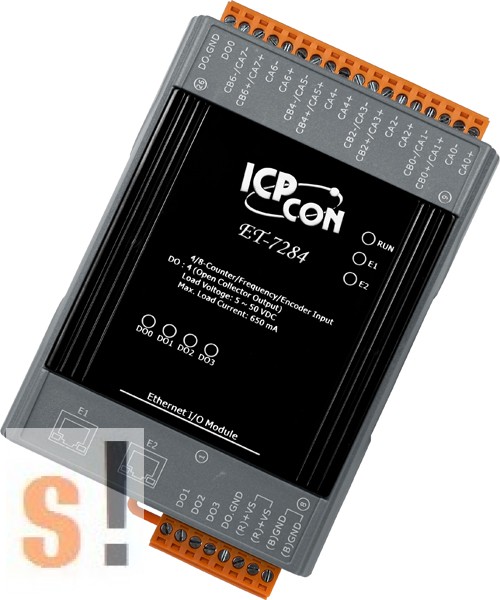

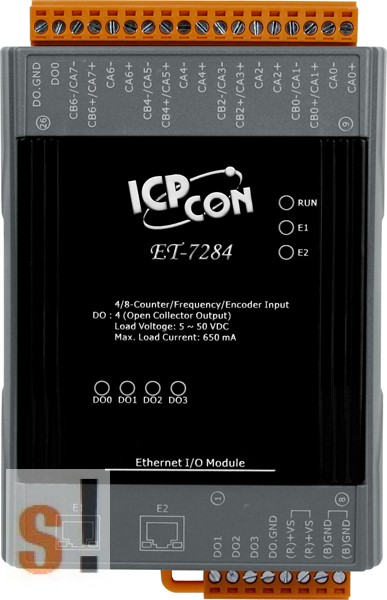

| ET-7284 CR |
Ethernet I/O Module with 4-/8-channel Counter/Frequency/Encoder Input and 4-channel Digital Output (RoHS) |
| PET-7284 CR |
PoE Ethernet I/O Module with 4-/8-channel Counter/Frequency/Encoder Input and 4-channel Digital Output (RoHS) |
|
| |
|
|
|
| |
