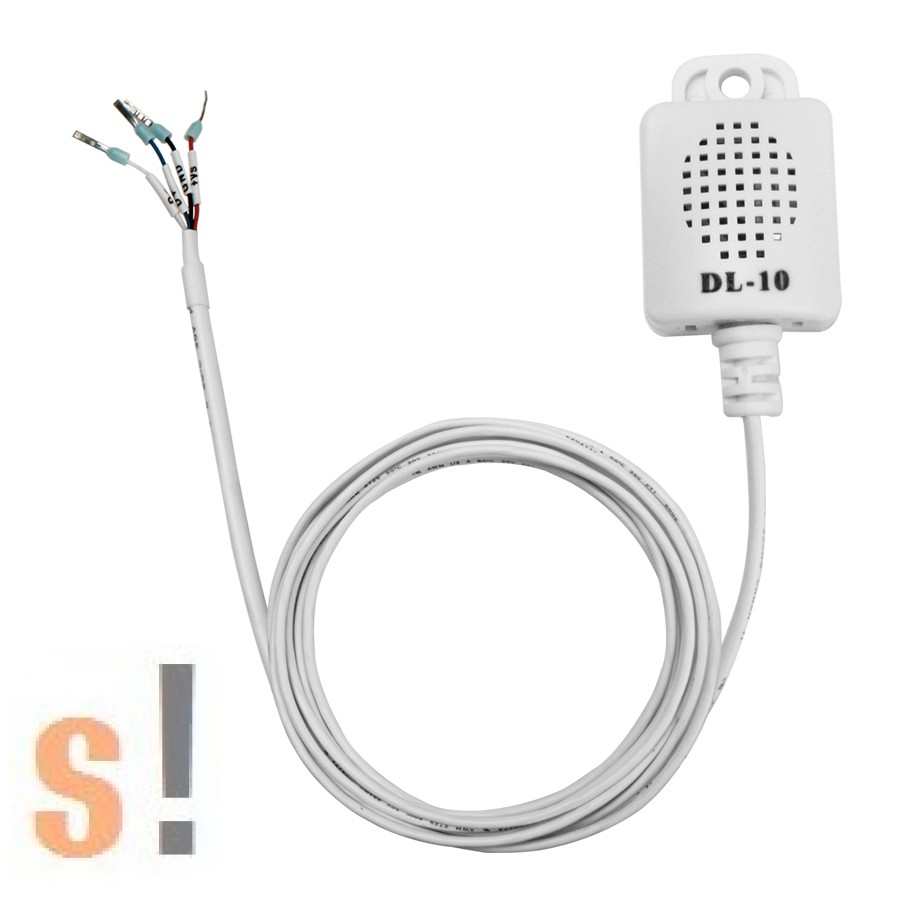

The DL-10/DL-10BK, DL-100T485/DL-100T485P/DL-100T485-W/DL-100T485P-W/DL-100TM485/DL-100TM485P/DL-100TM485-W/DL-100TM485P-W is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display (DL-100) to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records.

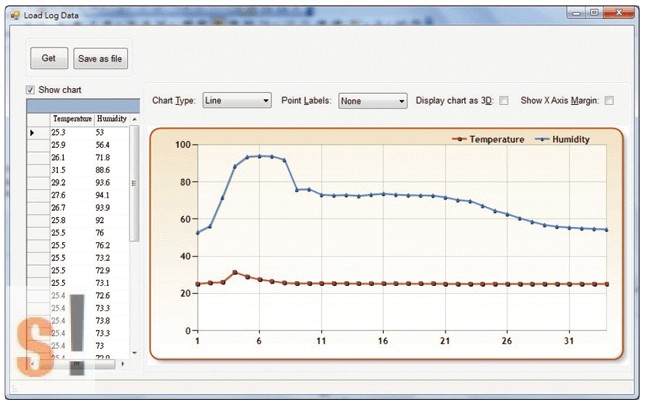

The Data Logger Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.
Specification:
- Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
- Accuracy:
- +/-0.4°C; +/-3.0% RH for non-P verison
- +/-0.3°C; +/-1.8% RH for P version

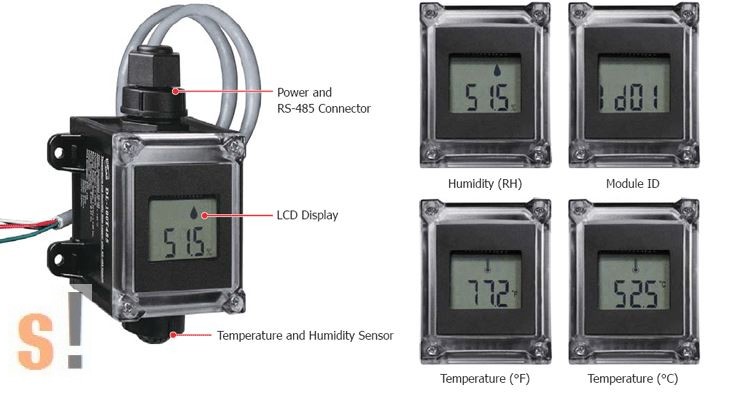

- LCD Display Shows Temperature, Humidity and Module ID
- 10 ~ 30 VDC Power Input
- IP66 Waterproof
- Data Logger Can Store Up to 4088 Temperature and Humidity Records
- RS-485 Communication interface
- DCON or Modbus RTU Protocol
- Windows Software Included
Application:
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries

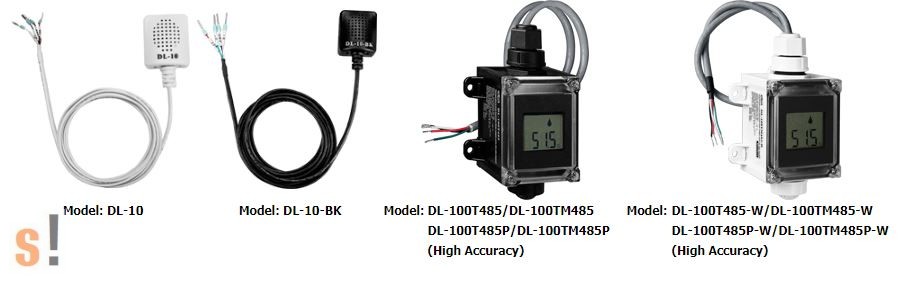

| Models |

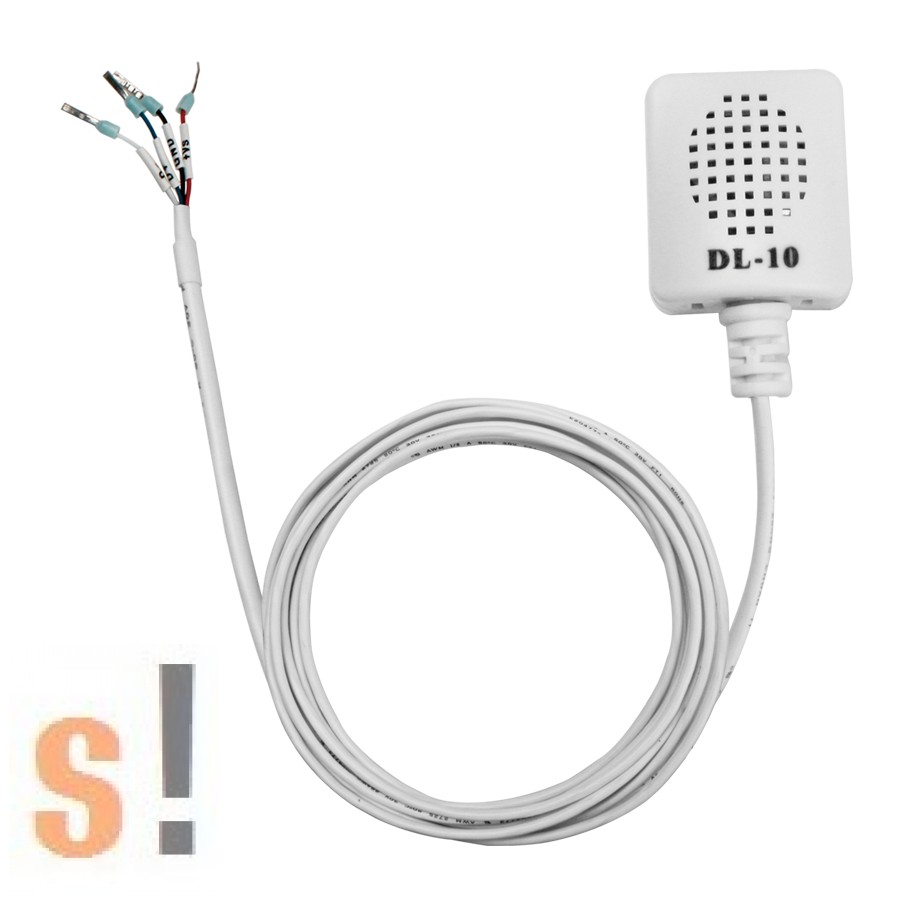

DL-10/DL-10-BK |
DL-100T485
DL-100T485-W |
DL-100TM485
DL-100TM485-W |
DL-100T485P
DL-100T485P-W |
DL-100TM485P
DL-100TM485P-W |
| Temperature Sensor |
| Measuring Range |
-20 ~ +60°C (-4 ~ +140°F) |
| Resolution |
0.1°C |
| Accuracy |

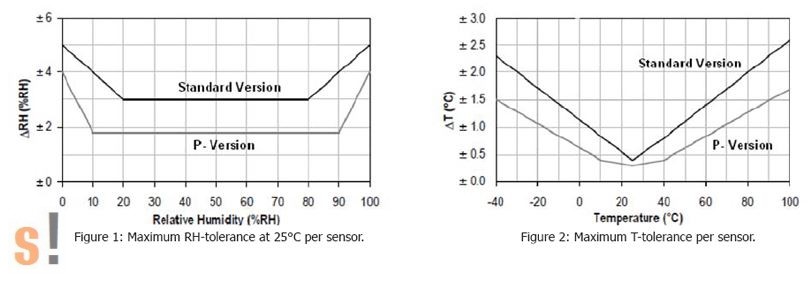

Typical: ±0.4°C; refer to figure 2 |
Typical: ±0.3°C; refer to figure 2 |
| Precision |
+/- 0.1°C |
| Humidity Sensor |
| Measuring Range |
10 ~ 95% RH |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| Accuracy |
Typical: ±3% RH @ 20 ~ 80% RH; refer to figure 1 |
Typical: ±1.8% RH @ 10 ~ 90% RH; refer to figure 1 |
| Precision |
+/- 0.1% RH |
| LCD Display |
| Displayed Information |
- |
Temperature (°C and °F), Humidity (RH), Module ID |
| Data Logger |
| Time Interval |
- |
10 seconds to 1 day |
| Max. Records |
- |
4088 temperature and humidity records |
| Mode |
- |
Overwrite or stop logging when storage space is full |
| Overwrite Limitation |
- |
1,000,000 cycles |
| Communication |
| Interface |
RS-485; non-isolated |
| Baudrate |
1200 ~ 115200 bps |
| Data format |
N,8,1 |
| Protocol |
Modbus RTU |
DCON |
Modbus RTU |
DCON |
Modbus RTU |
| Max. Modules on same bus |
32 |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Power Consumption |
0.05 W |
0.15 W |
| Mechanical |
| Dimensions (W x L x H) |
25 mm X 20.2 mm X 30 mm |
82 mm x 126 mm x 55 mm |
| Waterproof Level |
- |
IP66 |
| Installation |

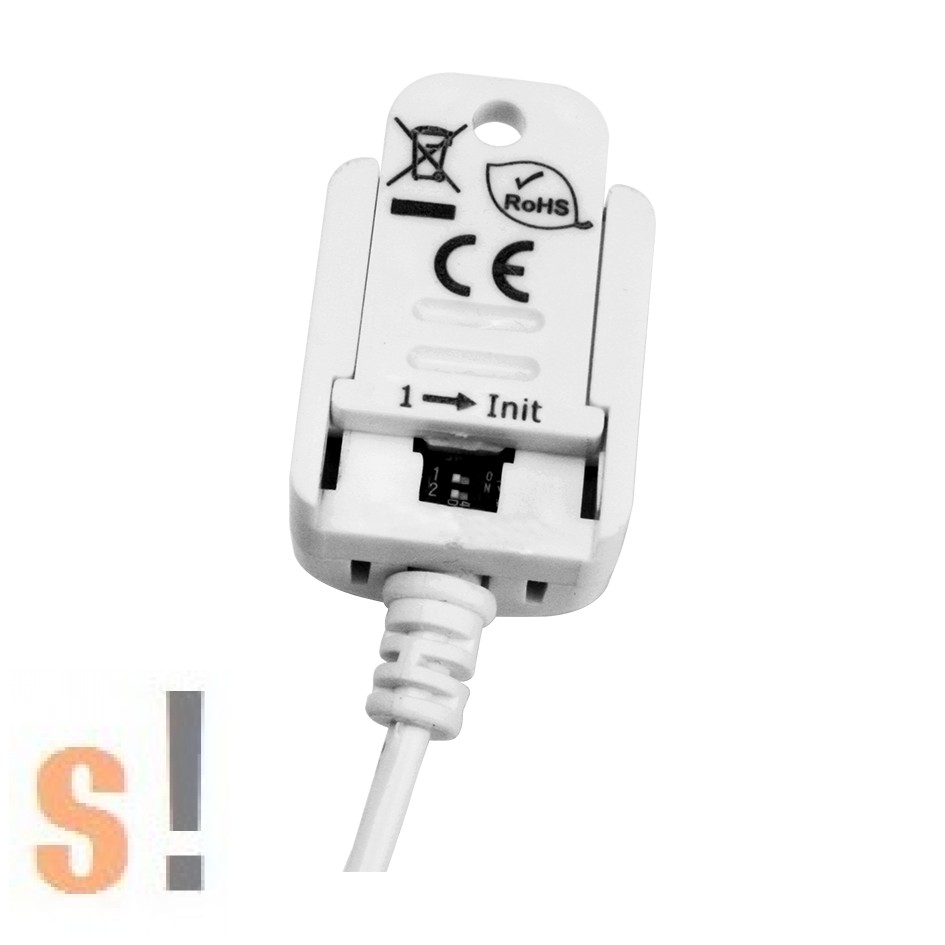

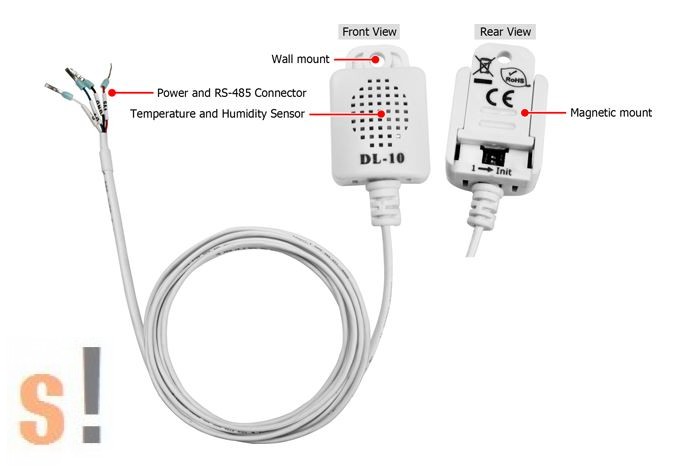

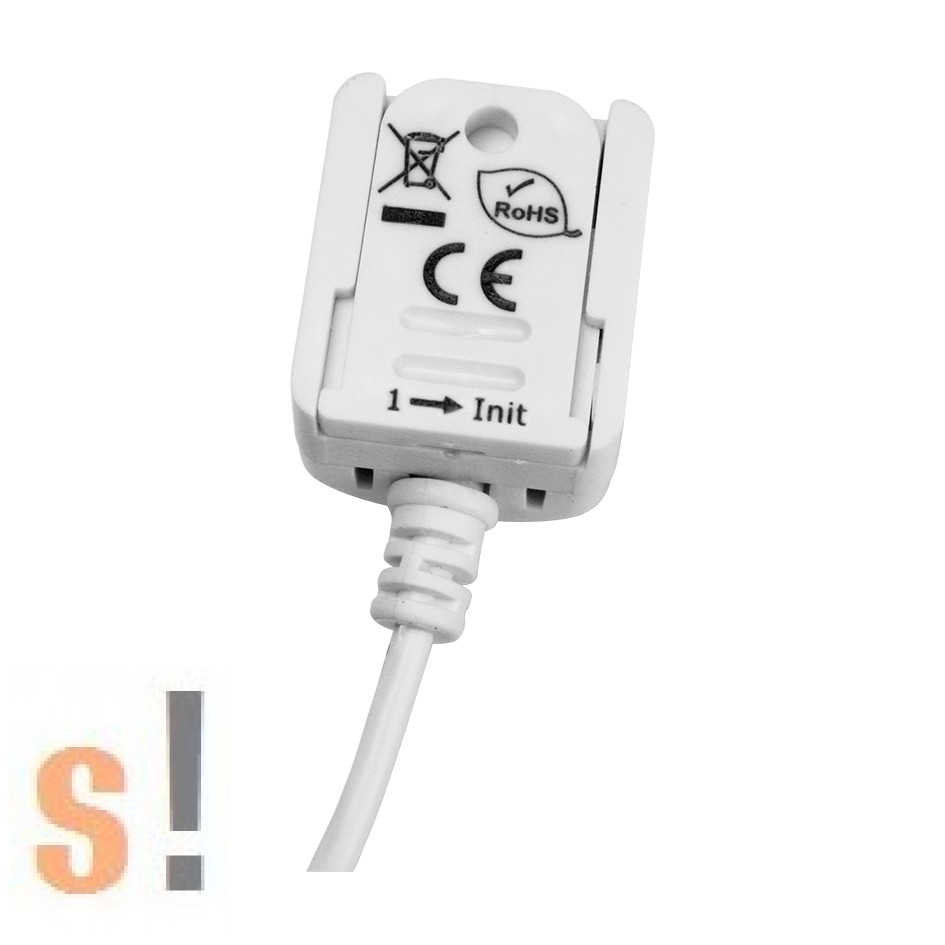

Magnetic mount;
Wall mount |
DIN-Rail; Wall mount |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 95% RH, Non-condensing |
5 ~ 95% RH, Non-condensing |
|
