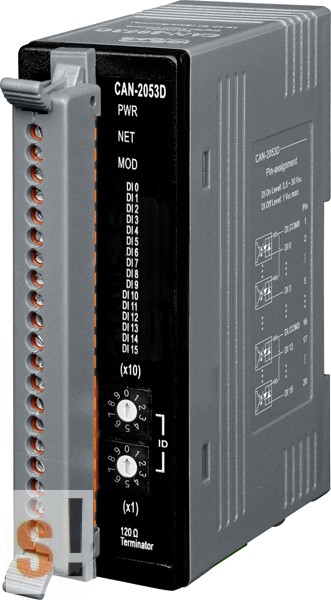

CAN-2053D CR # CAN Module/DeviceNet/16DI/Slave/LED, ICP DAS
CAN-2053D CR # DeviceNet Slave Module of 16-channel Isolated Sink/Source Digital Input
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
|
DeviceNet Interface
|
|
DeviceNet Specification
|
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
|
|
DeviceNet subscribe
|
Group 2 Only Server
|
|
Connection supported
|
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
|
|
Baud Rate Setting by Rotary Switch
|
125 kbps, 250 kbps, 500 kbps
|
|
Node ID Setting by Rotary Switch
|
0 ~ 63
|
|
Heartbeat message
|
Yes
|
|
Shutdown message
|
Yes
|
|
Terminator Resistor
|
Switch for 120 Ω terminator resistor
|
|
Connector
|
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
|
|
EDS file
|
Yes
|
|
LED
|
PWR/NET/MOD
|
|

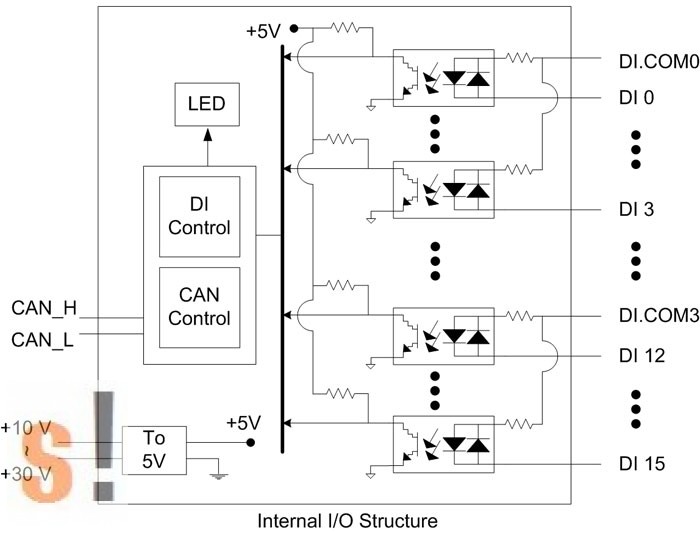

Digital Input
|
|
Channels
|
16 (Sink/Source)
|
|
ON Voltage Level
|
+3.5 ~ +30 VDC
|
|
OFF Voltage Level
|
+1 VDC Max.
|
|
Input Impedance
|
3 kΩ, 0.3 W
|
|
Intra-module Isolation
|
3750 Vrms
|
|
ESD Protection
|
4 kV contact for each channel
|
|
LED
|
|
DeviceNet Status
|
3 LEDs for PWR/NET/MOD
|
|
Terminal Resister
|
1 LED as terminal resister indicators
|
|
DI LED
|
16 LEDs as digital input indicators
|
|
Power
|
|
Power Supply
|
Unregulated +10 ~ +30 VDC
|
|
Power Consumption
|
1.5 W
|
|
Mechanism
|
|
Installation
|
DIN-Rail
|
|
Dimensions
|
32.3 mm x 99 mm x 77.5 mm ( W x L x H )
|
|
Environment
|
|
Operating Temp.
|
-25 ~ 75 ℃
|
|
Storage Temp.
|
-30 ~ 80 ℃
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
|
|
|
|
|
| |
|
|
|
DeviceNet Module of 16-channel Isolated Sink/Source Digital Input
|
|
|
