CAN-2018D/S CR # CAN Modul/DeviceNet/8AI/Hőelem/Slave/CN-1824-sorkapocs, ICP DAS

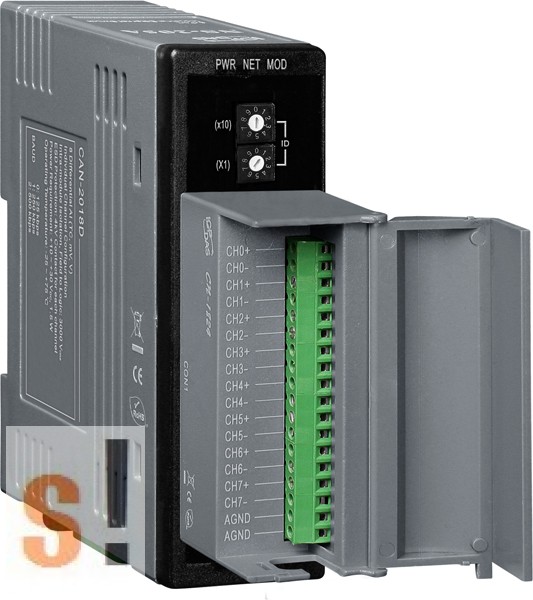

CAN-2018D/S CR # DeviceNet Slave Module of 8-channel Thermocouple Input Include CAN-2018D module and a CN-1824 daughter board
|
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
|
|
|
|
|
|
| |
|
|
DeviceNet Interface
|
|
DeviceNet Specification
|
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
|
|
DeviceNet subscribe
|
Group 2 Only Server
|
|
Connection supported
|
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
|
|
Baud Rate Setting by Rotary Switch
|
125 kbps, 250 kbps, 500 kbps
|
|
Node ID Setting by Rotary Switch
|
0 ~ 63
|
|
Heartbeat message
|
Yes
|
|
Shutdown message
|
Yes
|
|
Terminator Resistor
|
Switch for 120 Ω terminator resistor
|
|

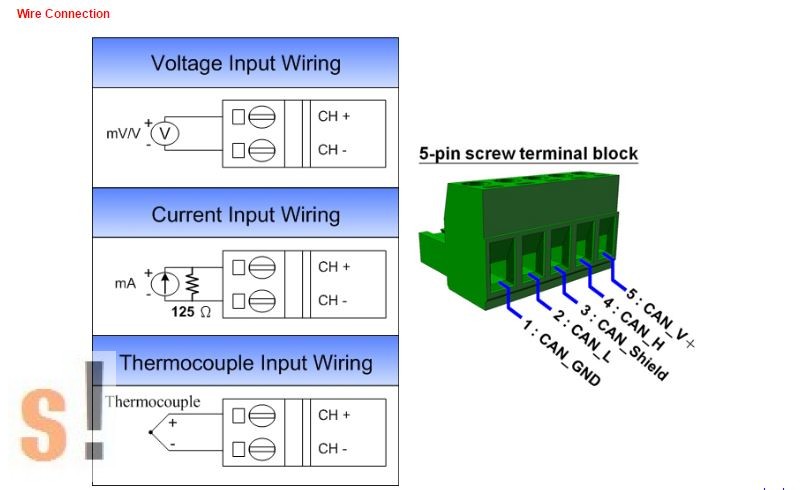

Connector
|
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
|
|
EDS file
|
Yes
|
|
Analog Input
|
|
Channels
|
8
|
|
Input Type
|
+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
|
|
Resolution
|
16-bit
|
|
Sampling Rate
|
10 Samples/Sec. (Total)
|
|
Accuracy
|
+/-0.1% FSR
|
|
Zero Drift
|
+/- 10 μV/ °C
|
|
Span Drift
|
+/- 25 ppm/ °C
|
|
Common Mode Rejection
|
86 dB
|
|
Normal Mode Rejection
|
100 dB
|
|
Input Impedance
|
>400 kΩ
|
|
Individual Channel Configuration
|
Yes
|
|
Open Thermocouple Detection
|
Yes
|
|
Over voltage Protection
|
240 Vrms
|
|
ESD Protection
|
+/-4kV, Contact for each terminal.
|
|
Intra-module Isolation, Field to Logic
|
3000 VDC
|
|
LED
|
|
Power
|
PWR, red
|
|
DeviceNet Status
|
NET/MOD, green/orange
|
|
Power
|
|
Power Supply
|
Unregulated +10 ~ +30 VDC
|
|
Power Consumption
|
1.5 W
|
|
Mechanism
|
|
Installation
|
DIN-Rail
|
|
Dimensions
|
33 mm x 99 mm x 78 mm (W x L x H)
|
|
Environment
|
|
Operating Temp.
|
-25 ~ 75 ℃
|
|
Storage Temp.
|
-30 ~ 80 ℃
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
|
|
|
| Hőelem típusok: |
|
| |
|
|
Type Code
|
Temperature Range (°C)
|
|
J
|
-210 °C ~ +1200 °C
|
|
K
|
-270 °C ~ +1372 °C
|
|
T
|
-270 °C ~ +400 °C
|
|
E
|
-270 °C ~ +1000 °C
|
|
R
|
-50 °C ~ +1765 °C
|
|
S
|
-50 °C ~ +1765 °C
|
|
B
|
0 °C ~ +1820 °C
|
|
N
|
-270 °C ~ +1300 °C
|
|
C
|
0 °C ~ +2320 °C
|
|
|
|
|
|
|
| |
|
|
|
DeviceNet Slave Module of 8-channel Thermocouple Input
Include CAN-2018D module and a CN-1824 daughter board
|
|
|
