CAN-2017D CR # CAN Modul/DeviceNet/8AI/Different/Slave/LED, ICP DAS
CAN-2017D # DeviceNet Slave Module of 8-channel Differential Analog Input
| DeviceNet Interface |
| DeviceNet Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5 |
| DeviceNet subscribe |
Group 2 Only Server |
| Connection supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
| Node ID |
0~63 selected by rotary switch |
| Baud Rate (bps) |
125 kbps, 250 kbps, 500 kbps |
| Terminator Resistor |
Switch for 120 Ω terminator resistor |
| Connector |

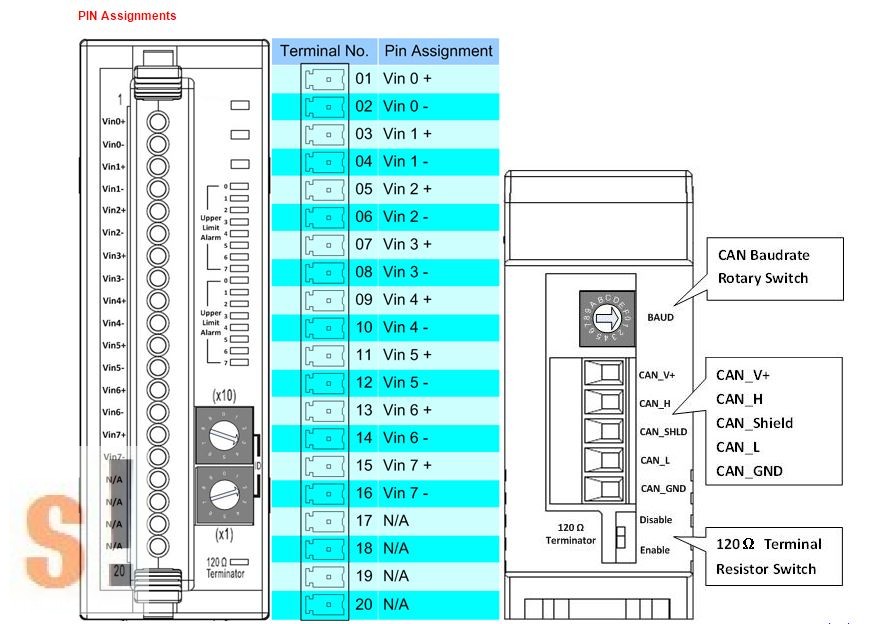

5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
| EDS file |
Yes |
| Analog Input |
| Channels |
8 |
| Input Type |
±10V, ±5V, ±1V, ±500mV, ±150mV, ±20mA,( External 125 Ohm Resistor Required) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec. (Total) |
| Accuracy |
±0.1% FSR |
| Zero Drift |
±10 μV/ °C |
| Span Drift |
±25 ppm/ °C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>2 MΩ |
| Individual Channel Configuration |
Yes |
| Over voltage Protection |
240 Vrms |
| ESD Protection |
±4kV, Contact for each terminal |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| LED |
| Status LED |
PWR LED, NET LED, MOD LED |
| Terminal Resister LED |
1 LED as terminal resister Indicator |
| Alarm LED |
8 LEDs as over Upper Limit Indicators
8 LEDs as under the Lower Limit Indicators |
| Power |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
2.0 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 99 mm x 78 mm ( W x L x H ) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
|
|
| |
|
|
|
DeviceNet Slave Module of 8-channel Differential Analog Input
|
|
|
